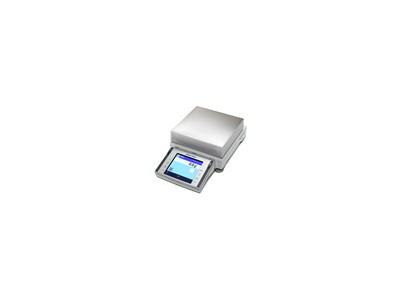

METTLER梅特勒精密天平XP5003SDR

METTLER梅特勒精密天平XP5003SDR
型号：XP5003SDR
显示屏：彩色触摸屏
最大秤量：1000g|5100g
可读性：0.001g|0.01g
校准方式：内部校准

仪器简介：

XP超越系列至尊型精密天平展示世界领先的称量性能、无与伦比的符合人体工学的操作体验及先进的数据管理解决方案。它们完全遵循行业法规的要求，确保更高的生产效率并使操作更安全。
采用高速单模块称量传感器（MonoBlocHighSpeed），以最快速度传递准确称量结果，具有良好的抗冲击、抗过载性能。
专业级全自动校准技术(proFACT)--温度漂移和时间设置触发的全自动内置砝码校准,确保获得准确称量结果.
彩色触摸显示屏（Smart Screen），方便天平称量菜单和参数设置。
具有状态显示的外置红外感应器选件（ErgoSens），实现天平无需用手接触的操作。
内置RS232通讯接口和灵活的6种通讯接口选件（RS232、LocalCan、BTS、PS/2、Ethernet和MiniMettler），方便连接打印和电脑等外围设备。
优化天平适应性的称量参数设置，满足不同称量环境要求。
具有简单称量、统计称量、公式称量、计件称量、百分比称量、密度测定以及优化的动态称量等内置应用程序。
通过E-Loader软件，实现天平软件的即时更新。

技术指标

最大称量值 5100g

精细量程的最大称量值 1000g

可读性 10mg

精细量程的可读性 1mg

最大称量值的重复性误差(sd) 6mg

1/10最大称量值的重复性误差(sd) 1mg

线性误差 6mg

典型稳定时间 2s

天平外型尺寸(W×D×H mm) 214×395×363

防风罩(mm) 248

秤盘尺寸(W×D mm) 127×127

Balance model	XP203S	XP603S	XP603SDR	XP1203S	XP2003SDR	XP5003SDR
Stand-alone weighing platform	X203S	X603S	X603SDR	X1203S	X2003SDR	X5003SDR
Maximum capacity	210 g	610 g	610 g	1210 g	2100 g	5100 g
Maximum capacity, fine range	–	–	120 g	–	500 g	1000 g
Readability	1 mg	1 mg	10 mg	1 mg	10 mg	10 mg
Readability, fine range	–	–	1 mg	–	1 mg	1 mg
Repeatability (sd)	0.9 mg	0.9 mg	6 mg	0.8 mg	6 mg	6 mg
Repeatability, fine range (sd)	–	–	1 mg	–	1 mg	1 mg
Linearity	2 mg	2 mg	10 mg	2 mg	6 mg	6 mg
Settling time	1.5 s	1.5 s	1.5 s	1.5 s	2 s	2 s
Balance dimensions (WxDxH mm)	214x395x363
Usable height of draft shield (mm)	248
Weighing pan dimensions (WxD mm)	127x127

Balance model	XP204S	XP404S	XP404SDR
Stand-alone weighing platform	X204S	X404S	X404SDR
Maximum capacity	210 g	410 g	410 g
Maximum capacity, fine range	-	-	80 g
Readability	0.1 mg	0.1 mg	1 mg
Readability, fine range	-	-	0.1 mg
Repeatability (sd)	0.2 mg	0.1 mg	0.6 mg
Repeatability, fine range (sd)	-	-	0.1 mg
Linearity	0.2 mg	0.2 mg	0.6 mg
Settling time	2 s	2 s	2 s
Balance dimensions (WxDxH mm)	214x395x363
Usable height of draft shield (mm)	248
Weighing pan dimensions (∅ in mm)	90

Balance model	XP802S	XP1202S	XP2002S	XP4002S	XP4002SDR
Stand-alone weighing platform	X802S	X1202S	X2002S	X4002S	X4002SDR
Maximum capacity	810 g	1210 g	2100 g	4100 g	4100 g
Maximum capacity, fine range	–	–	–	–	800 g
Readability	10 mg	10 mg	10 mg	10 mg	100 mg
Readability, fine range	–	–	–	–	10 mg
Repeatability (sd)	8 mg	8 mg	8 mg	8 mg	60 mg
Repeatability, fine range (sd)	–	–	–	–	8 mg
Linearity	20 mg	20 mg	20 mg	20 mg	60 mg
Settling time	1.2 s	1.2 s	1.2 s	1.2 s	1.2 s
Balance dimensions (WxDxH mm)	194x392x96
Weighing pan dimensions (WxD mm)	170x205

Balance model	XP6002S	XP6002SDR	XP8002S	XP10002S	XP10002SDR
Stand-alone weighing platform	X6002S	X6002SDR	X8002S	X10002S	X10002SDR
Maximum capacity	6100 g	6100 g	8100 g	10100 g	10100 g
Maximum capacity, fine range	–	1200 g	–	–	2000 g
Readability	10 mg	100 mg	10 mg	10 mg	100 mg
Readability, fine range	–	10 mg	–	–	10 mg
Repeatability (sd)	8 mg	60 mg	8 mg	8 mg	60 mg
Repeatability, fine range (sd)	–	8 mg	–	–	8 mg
Linearity	20 mg	100 mg	20 mg	20 mg	50 mg
Settling time	1.2 s	1.2 s	1.5 s	1.5 s	1.5 s
Balance dimensions (WxDxH mm)	194x392x96
Weighing pan dimensions (WxD mm)	170x205

Balance model	XP2001S	XP4001S	XP6001S	XP8001S	XP10001S
Stand-alone weighing platform	X2001S	X4001S	X6001S	X8001S	X10001S
Maximum capacity	2100 g	4100 g	6100 g	8100 g	10100 g
Readability	100 mg	100 mg	100 mg	100 mg	100 mg
Repeatability (sd)	80 mg	80 mg	80 mg	80 mg	80 mg
Linearity	60 mg	60 mg	60 mg	100 mg	100 mg
Settling time	0.8 s	0.8 s	0.8 s	1 s	1 s
Balance dimensions (WxDxH mm)	194x392x96
Weighing pan dimensions (WxD mm)	190x223
