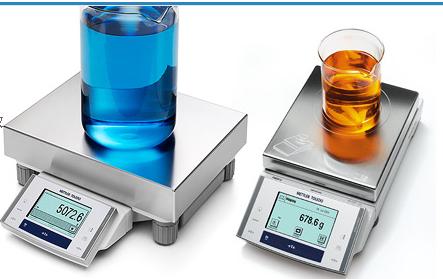

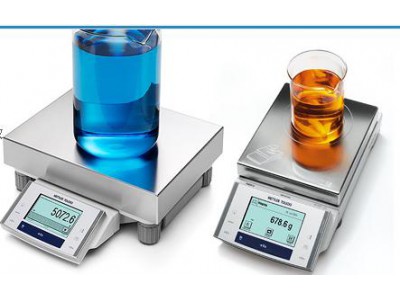

METTLER梅特勒精密天平XS10001S

METTLER梅特勒精密天平XS10001S
型号：XS10001S
显示屏：彩色触摸屏
最大秤量：10100g
可读性：0.01g
校准方式：内部校准

仪器简介：

XS超越系列专业型精密天平是专为提高称量效率而设计，体现了前所未有的速度、可靠性和操作便利。
* 采用高速单模块称量传感器（MonoBlocHighSpeed），以最快速度传递准确称量结果，具有良好的抗冲击、抗过载性能。
* 全自动校准技术（FACT）——温度漂移触发的自动内部校准，确保称量结果的准确性。
* 触摸显示屏（Touch screen），方便天平称量菜单和参数设置。
* 具有状态显示的外置红外感应器选件（ErgoSens），实现天平无需用手接触的操作。
* 内置RS232通讯接口和灵活的6种通讯接口选件（RS232、LocalCan、BTS、PS/2、Ethernet和MiniMettler），方便连接打印和电脑等外围设备。
* 优化天平适应性的称量参数设置，满足不同称量环境要求。
* 具有简单称量、统计称量、公式称量、计件称量、百分比称量、密度测定以及优化的动态称量等内置应用程序。
* 通过E-Loader软件，实现天平软件的即时更新

规格 - XS10001S 精密天平

物料号 (s)	11130193
商业名称	XS8001S/A,XS8001S/M
极限值
最大称量值	0 .. 10.1 kg
可读度	100 mg
重复性(sd)	80 mg
线性误差	100 mg
灵敏度偏移（测试加载）	500 mg (10 kg)
典型值
重复性(sd)	40 mg
线性误差	34 mg
灵敏度偏移（测试加载）	300 mg (10 kg)
最小称量值/USP	120 g
最小称量值 (@>	8 g
稳定时间	1 s
外形尺寸
天平外形尺寸（宽 x 长 x 高）	194 x 366 x 96 mm
秤盘外形尺寸（宽 x 宽）	190 x 223 mm

Balance model	XS4001S	XS6001S	XS8001S	XS10001S
Limit values
Maximum capacity; fine range	4.1 kg; –	6.1 kg; –	8.1 kg; –	10.1 kg; –
Readability; fine range	100 mg; –	100 mg; –	100 mg; –	100 mg; –
Repeatability 1); fine range	80 mg; –	80 mg; –	80 mg; –	80 mg; –
Linearity deviation	60 mg	60 mg	100 mg	100 mg
Sensitivity offset (test weight)	240 mg (4 kg)	240 mg (6 kg)	600 mg (8 kg)	500 mg (10 kg)
Typical values
Repeatability; fine range	40 mg; –	40 mg; –	40 mg; –	40 mg; –
Linearity deviation	20 mg	19 mg	36 mg	34 mg
Sensitivity offset (test weight)	160 mg (4 kg)	140 mg (6 kg)	320 mg (8 kg)	300 mg (10 kg)
Minimum sample weight2); fine range	120 g; –	120 g; –	120 g; –	120 g; –
Minimum sample weight3); fine range	8 g; –	8 g; –	8 g; –	8 g; –
Settling time	0.8 s	0.8 s	1 s	1 s
Balance dimensions (WxDxH)	194x366x96 mm
Weighing pan dimensions (WxD)	190x223 mm

Balance model	XS203S	XS403S	XS603S	XS603SDR	XS1003S
Limit values
Maximum capacity; fine range	210 g; –	410 g; –	610 g; –	610 g; 120 g	1010 g; –
Readability; fine range	1 mg; –	1 mg; –	1 mg; –	10 mg; 1 mg	1 mg; –
Repeatability 1); fine range	0.9 mg; –	0.9 mg; –	0.9 mg; –	6 mg; 1 mg	0.8 mg; –
Linearity deviation	2 mg	2 mg	2 mg	6 mg	2 mg
Sensitivity offset (test weight)	5 mg (200 g)	6 mg (400 g)	4.5mg (600 g)	9 mg (600 g)	5 mg (1000 g)
Typical values
Repeatability; fine range	0.5 mg; –	0.5 mg; –	0.5 mg; –	4 mg; 0.6 mg	0.4 mg; –
Linearity deviation	0.7 mg	0.7 mg	0.7 mg	0.7 mg	0.7 mg
Sensitivity offset (test weight)	3.2mg (200 g)	3.2mg (400 g)	3 mg (600 g)	6 mg (600 g)	3 mg (1000 g)
Minimum sample weight2); fine range	1.5 g; –	1.5 g; –	1.5 g; –	12 g; 1.8 g	1.2 g; –
Minimum sample weight3); fine range	100 mg; –	100 mg; –	100 mg; –	800 mg; 120 mg	80 mg; –
Settling time	1.5 s	1.5 s	1.5 s	1.5 s	1.5 s
Balance dimensions (WxDxH)	198x366x276 mm
Weighing pan dimensions (WxD)	127x127 mm

Balance model	XS802S	XS2002S	XS4002S	XS4002SDR	XS6002S	XS6002SDR
Limit values
Maximum capacity; fine range	810 g; –	2.1 kg; –	4.1 kg; –	4.1 kg; 0.8 kg	6.1 kg; –	6.1 kg; 1.2 kg
Readability; fine range	10 mg; –	10 mg; –	10 mg; –	100mg;10 mg	10 mg; –	100mg;10 mg
Repeatability 1); fine range	8 mg; –	8 mg; –	8 mg; –	60 mg; 8 mg	8 mg; –	60 mg; 8 mg
Linearity deviation	20 mg	20 mg	20 mg	60 mg	20 mg	60 mg
Sensitivity offset (test weight)	60 mg (800 g)	50 mg (2 kg)	60 mg (4 kg)	60 mg (4 kg)	60 mg (6 kg)	150 mg (6 kg)
Typical values
Repeatability; fine range	4 mg; –	4 mg; –	4 mg; –	40 mg; 4 mg	4 mg; –	40 mg; 4 mg
Linearity deviation	7 mg	7 mg	7 mg	7 mg	7 mg	7 mg
Sensitivity offset (test weight)	32 mg (800 g)	32 mg (2 kg)	32 mg (4 kg)	32 mg (4 kg)	30 mg (6 kg)	30 mg (6 kg)
Minimum sample weight2); fine range	12 g; –	12 g; –	12 g; –	120 g; 12 g	12 g; –	120 g; 12 g
Minimum sample weight3); fine range	800 mg; –	800 mg; –	800 mg; –	8 g; 0.8 g	800 mg; –	8 g; 0.8 g
Settling time	1.2 s	1.2 s	1.2 s	1.2 s	1.2 s	1.2 s
Balance dimensions (WxDxH)	194x366x96 mm
Weighing pan dimensions (WxD)	170x205 mm

产品	最大称量范围	可读性	重复性	秤盘尺寸
XS203S 精密天平	210 g	1 mg	0.9 mg	127 x 127 mm (W x D)
XS403S 精密天平	410 g	1 mg	0.9 mg	127 x 127 mm (W x D)
XS603S 精密天平	610 g	1 mg	0.9 mg	127 x 127 mm (W x D)
XS1003S 精密天平	1010 g	1 mg	0.8 mg	127 x 127 mm (W x D)
XS603S DR 精密天平	120 g / 610 g	1 mg / 10 mg	6 mg	127 x 127 mm (W x D)
XS2002S 精密天平	2100 g	10 mg	8 mg	170 x 205 mm (W x D)
XS4002S 精密天平	4100 g	10 mg	8 mg	170 x 205 mm (W x D)
XS4002S DR 精密天平	800 g / 4100 g	10 mg / 100 mg	60 mg	170 x 205 mm (W x D)
XS6002S 精密天平	6100 g	10 mg	8 mg	170 x 205 mm (W x D)
XS6002S DR 精密天平	1200 g / 6100 g	10 mg / 100 mg	60 mg	170 x 205 mm (W x D)
XS802S 精密天平	810 g	10 mg	8 mg	170 x 205 mm (W x D)
XS4001S 精密天平	4100 g	100 mg	80 mg	190 x 223 mm (W x D)
XS6001S 精密天平	6100 g	100 mg	80 mg	190 x 223 mm (W x D)
XS8001S 精密天平	8100 g	100 mg	80 mg	190 x 223 mm (W x D)
XS10001S 精密天平	10100 g	100 mg	80 mg	190 x 223 mm (W x D)
XS8001L 精密天平	8100 g	0.1 g	80 mg	280 x 360 mm (W x D)
XS16001L 精密天平	16100 g	0.1 g	80 mg	280 x 360 mm (W x D)
XS32001L 精密天平	32100 g	0.1 g	80 mg	280 x 360 mm (W x D)
XS32001L DR 精密天平	6400 g / 32100 g	0.1 g / 1 g	0.6 g	280 x 360 mm (W x D)
XS16000L 精密天平	16100 g	1 g	0.6 g	280 x 360 mm (W x D)
XS32000L 精密天平	32100 g	1 g	0.6 g	280 x 360 mm (W x D)
