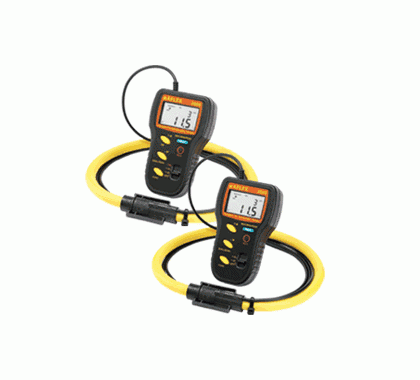

交流瓦特 AC Watt (50 or 65 Hz, PF 0.5 to 1, CT=1)只有AFLEX-3005
|
|
范围
|
解析度
|
读值准确度
|
|
100.0 - 999.9 W
|
0.1 W
|
2% of range
|
|
1.000 - 9.999 KW
|
0.001 KW
|
2% of range
|
|
10.00 - 99.99 KW
|
0.01 KW
|
2% of range
|
|
100.0 - 999.9 KW
|
0.1 KW
|
2% of range
|
|
1000 - 9999 KW
|
1 KW
|
2% of range
|
|
|
交流电流 AC Current(50 or 65 Hz ,Auto Rang,True RMS)
|
|
范围
|
解析度
|
读值准确度
|
|
0 - 300.0 A
|
0.1 A
|
1% of range
|
|
300.0 - 999.9 A
|
0.1 A
|
1% of range
|
|
1000 - 3000 A
|
1 A
|
1% of range
|
|
|
交流电压谐波分析 ( 百分比%及大小，1到50次谐波 )
|
|
范围
|
解析度
|
百分比准确度
|
量值准确度
|
|
1-20th
|
0.1%
|
±2%
|
±2% ±0.5V
|
|
21th-50th
|
0.1%
|
±4% of reading ±2.0%
|
±4% of reading ± 0.5V
|
|
|
交流电压 AC Voltage(50 or 65 Hz, ,Auto Rang,True RMS
|
|
范围
|
解析度
|
读值准确度
|
|
4.0 V - 600 V
|
0.1 V
|
±0.5% ± 5dgts
|
|
|
交流电流谐波分析(百分比%及大小，1到50次谐波 )
|
|
范围
|
解析度
|
百分比准确度
|
量值准确度
|
|
1-20th
|
0.1%
|
±2%
|
±2% of reading ±0.4A
|
|
21th-50th
|
0.1%
|
±4% of reading ±2.0%
|
±4% of reading ± 0.4V
|
|
|
范围
|
解析度
|
读值准确度
|
|
0.0-20%
|
0.1%
|
±2%
|
|
20-100%
|
0.1%
|
±6% of reading ±1%
|
|
100-999.9%
|
0.1%
|
±10% of reading ±1%
|
|
